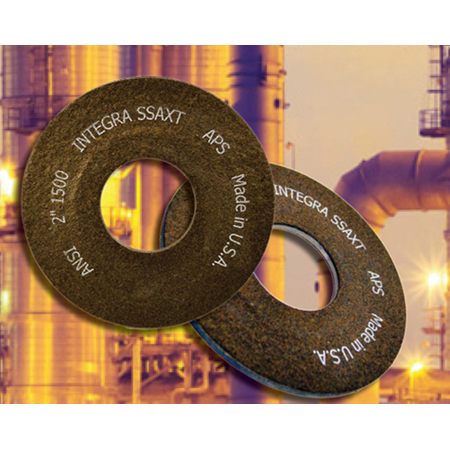

The Integra SSAXT flange isolation gasket kit was developed to meet the needs of our customers for a high temperature, cathodic protection gasket in severe service applications. The SSAXT combines the reliability of a Kamm-profile retainer with the temperature capabilities of a highly dielectric mineral seal. This gasket is suitable for use in all services up to and including ANSI 2500# and API 10,000# classes. Isolation Kits are available which include high temperature washers and sleeves. Max. Operating Temperature 800°F (427°C).
It designed to withstand operating temperatures which exceed the limits of epoxy/phenolic resin gaskets. They are also made from materials which electrically isolate and cathodically protect flanges and flange components. The engineered mica seals are effective at sealing across a wide range of chemicals, hydrocarbons, and gaseous mixtures, as well as maintaining sealing at elevated temperatures.

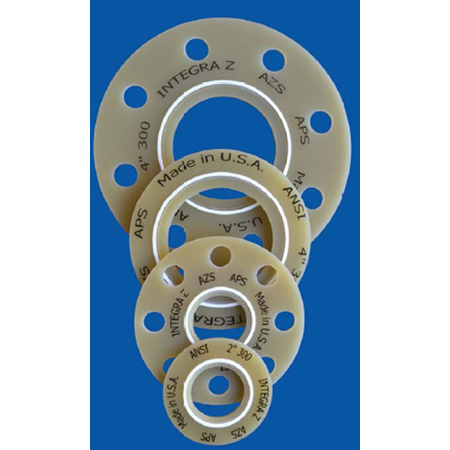

The Integra Z ® gasket kit is comprised of EC-5000 material for gaskets and washers, developed and used by NASA for absolute zero operating temperature -273°C / -459 °F~140°C / 284 °F. Sleeves are available in G-10 or optional Nomex materials. Metal backup washers are available in stainless steel.

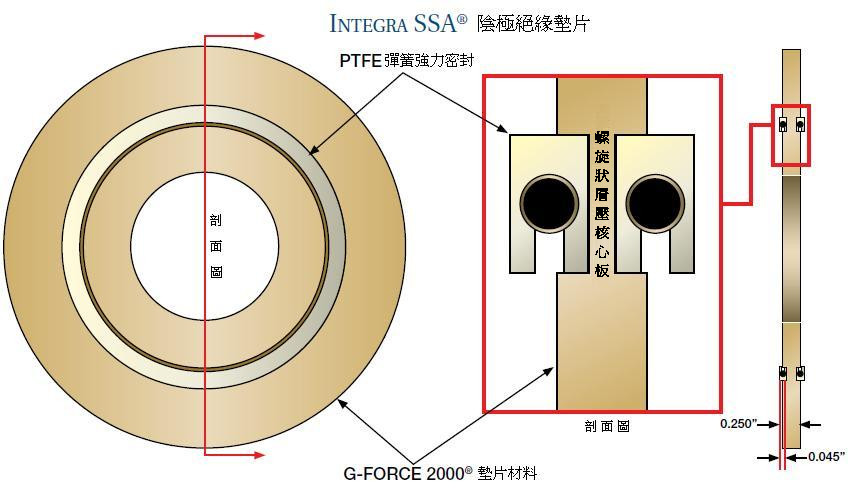

The APS Integra SSA® Cathodic Isolation Gasket is manufactured from proprietary G-FORCE 2000®, a special glass epoxy material with an impressive high compression strength
