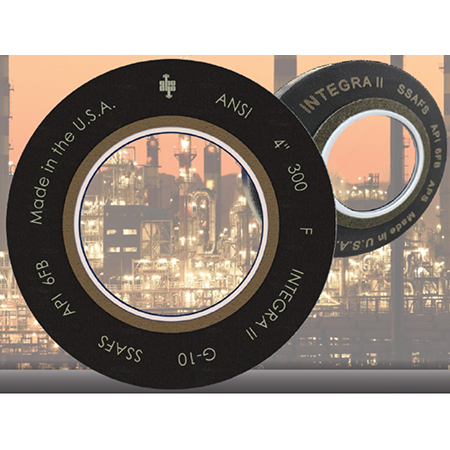

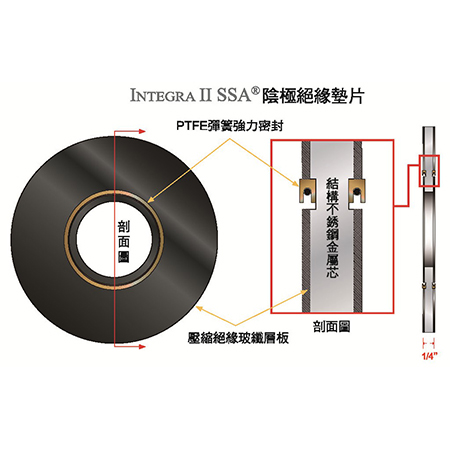

The new SSAFS® gasket combines the proven dependability of a PTFE pressure energized spring seal as the primary seal. The core of the gasket is 316 stainless steel, with permanently bonded insulating glass laminated adhered to both faces. Zero-free leaks for high sulfur content crude oil for H2S gas fugitive emissions, proven through multiple applications. Exceptionally dependable for insulating and sealing purposes for severe service and fire safe applications. pass API Standard 6FB test. Highly suitable for all severe service applications up to and including ANSI 2500# and API 10,000# classes.

Isolating between flanges of dissimilar metals to prevent galvanic corrosion, Wellhead isolation from interconnected flow lines, Mating mismatched dissimilar flanges, Eliminate turbulence and flow-induced erosion between ring-joint (RTJ) flagnes, Protect against corrosion on uncoated or scarred flange faces, to seal between flanges subjected to vibration/cavitations, Eliminate corrosion from forming in the cavities between RTJ flanges where intense modes of hostile chemicals may be present.

The APS Integra II SSA (Severe Service Application Stainless/Steel) Gasket is an exceptionally dependable gasket used for both insulating and general sealing purposes in Severe Service Applications.
